Apraksts

• Specification

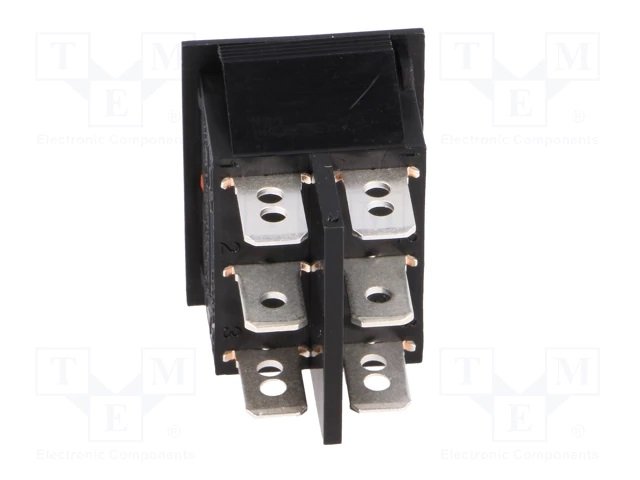

• Switch type ROCKER
• Contacts configuration SPDT x2
• AC contacts rating
• (at resistance load) 10 A / 250 VAC
• Switching method ON-ON + ON-ON
• Actuator colour red
• Max. contact resistance: 50mΩ;
• Leads 6.3x0.8mm connectors
• Flammability rating UL94V-2
• Panel thickness max 3mm
• Operating temperature -20...85°C
• Mounting hole diameter 30.2 x 22.2mm
• Body material polyamide

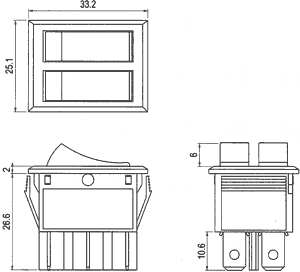

• Body dimensions 32 x 22 x 26.6mm
• Test voltage 1.5kV

Parametri

SPSTx2
10A/250VAC
ON-ON + ON+ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
2
Bez apgaismojuma

Papildu dokumentācija
