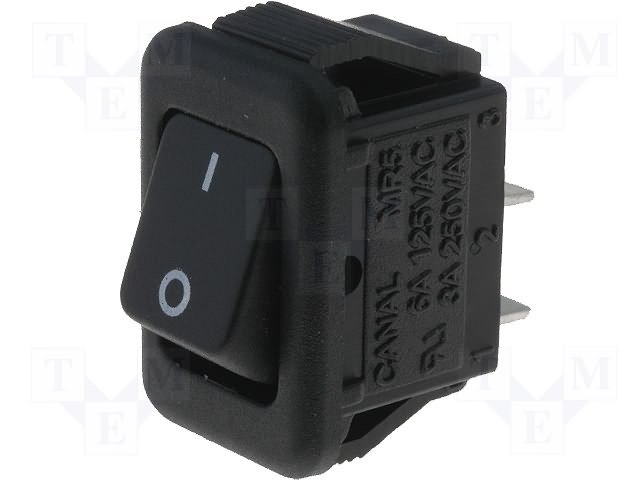

Apraksts

• Specification
• Switch type ROCKER
• Stable positions number 2-position
• Contacts configuration SPST
• Switching method ON-OFF
• AC contacts rating
• (at resistance load) 3 A / 250 VAC
• Key button colour black
• Max. contact resistance: 20mΩ;
• Flammability rating UL94V-2
• Operating temperature -25...100°C
• Leads for soldering
• Electrical life 10000cycles
• Mounting hole diameter 13.6 x 9.2mm
• Number of positions 2
• Button marking --O
• Body material polyamide
• Body dimensions 13.4 x 9 x 8.2mm
• Terminals plating silver plated
• Contact material silver alloy
• Terminals material copper alloy

Parametri

SPST
3A/250VAC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
1
Bez apgaismojuma

Papildu dokumentācija
