Apraksts

• Type of switch ROCKER
• Contacts configuration SPST
• Number of positions 2
• Switching method(the position in bracket indicates momentary position.) OFF-ON
• AC contacts rating @R(at resistive load) 3A / 250V AC
• Key button colour white
• Illumination none
• Max. contact resistance: 35mΩ
• Body colour white
• Operating temperature -30...80°C
• Leads 4,8x0,8mm connectors
• Electrical life 10000 cycles
• Mounting hole diameter 19.2x13mm
• Button marking I-O
• Shape rectangular
• Related items RSC07

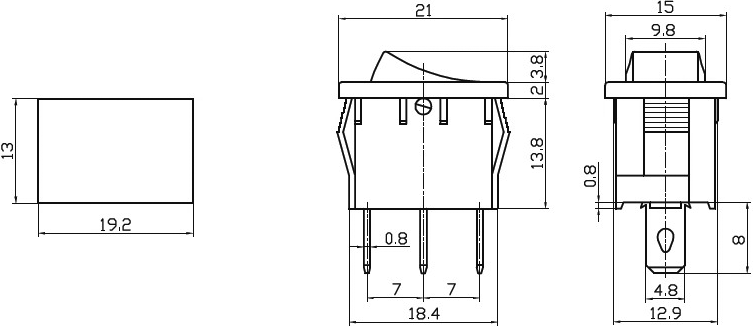

• Body dimensions 18.8x12.9x13.4mm
• Height above panel 5.8mm
• Stable positions number 2

Parametri

SPST
3A/250VAC
OFF-ON
2
IP00
2
Taustiņslēdzis
Ar fiksāciju
1
Bez apgaismojuma

Papildu dokumentācija
