Apraksts

• Manufacturer SCI

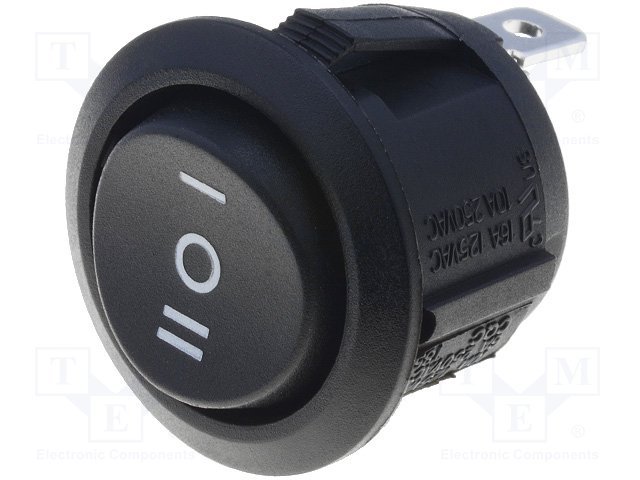

• Switch type ROCKER
• Stable positions number 1-position
• Contacts configuration SP3T
• Switching method (ON)-OFF-(ON)
• AC contacts rating
• (at resistance load) 6 A / 250 VAC
• DC contacts rating
• (at resistance load) 20 A / 12 VDC
• Key button colour black
• Max. contact resistance: 50mΩ
• Body colour black
• Flammability rating UL94V-2
• Operating temperature -20...85°C

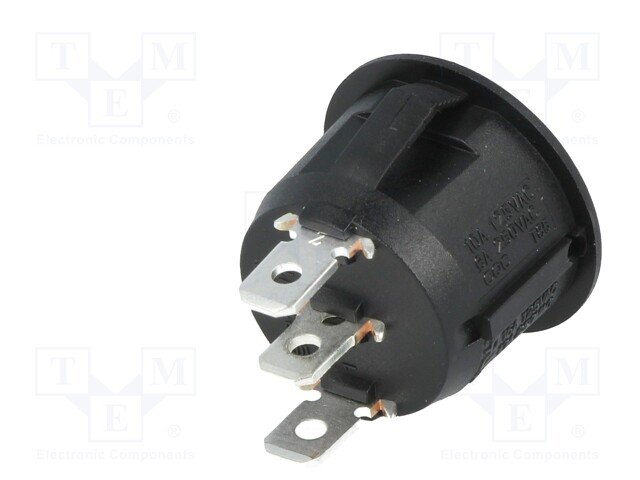

• Leads 4.8x0.8mm connectors
• Panel thickness max 3mm
• Electrical life 6000cycles

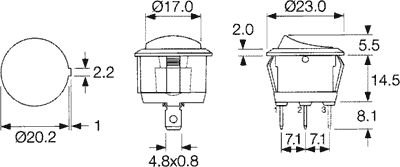

• Mounting hole diameter Ø20.2mm
• Number of positions 3
• Button marking --O=
• Body material polyamide
• Associated items R13-112-12

Parametri

SP3T
6A/250VAC
20A/12VDC
(ON)-OFF-(ON)
3
IP00
1
Taustiņslēdzis
Bez fiksācijas
1
Bez apgaismojuma
