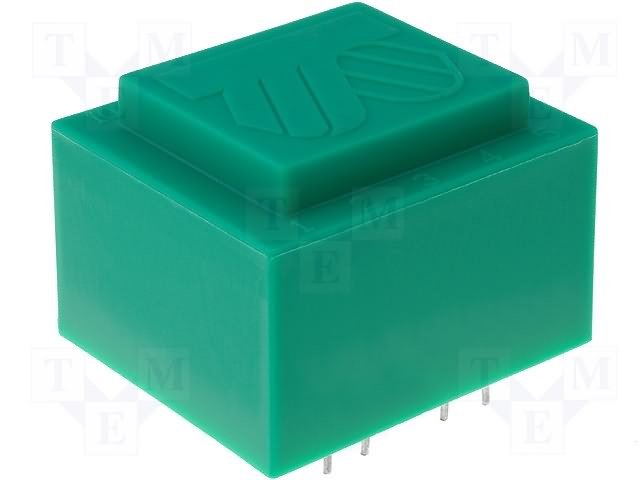

Transformators 220V=>12V, 125mA, 1.5VA, 28x33x22mm
Transformators 220V=>12V, 125mA, 1.5VA, 28x33x22mm
Transformators 220V=>12V, 125mA, 1.5VA, 28x33x22mm Transformators 220V=>12V, 125mA, 1.5VA, 28x33x22mm

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Transformators 220V=>12V, 125mA, 1.5VA, 28x33x22mm

Cena: 4.48 €
00012032
TEZ1.5/D/12V
6
  • Apraksts

    • Manufacturer BREVE TUFVASSONS
    • Type of transformer encapsulated
    • Power 1.5VA
    • Primary voltage 230V AC
    • Secondary voltage 1 12V
    • Secondary winding current 1 125mA
    • Mounting PCB
    • IP rating IP00
    • Conform to the norm PN-EN 61558-1:2000,  PN-EN 61558-2-1:2000,  PN-EN 61558-2-6:2000
    • Thermal class Ta60B
    • Secondary winding terminals 07.сен
    • Primary winding terminals 01.май
    • Weight 70g
    • A dimension 28mm
    • A1 dimension 20mm
    • A2 dimension 20mm
    • B dimension 33mm
    • C dimension 22mm
    • Electrical insulation strength 4kV/60s
    • Additional information
    • Gross weight: 73.3 g
    • Manufacturer part number: TEZ1.5/D230/12V

    Parametri

    12VAC
    1
    125mA
    1.5VA
