Apraksts

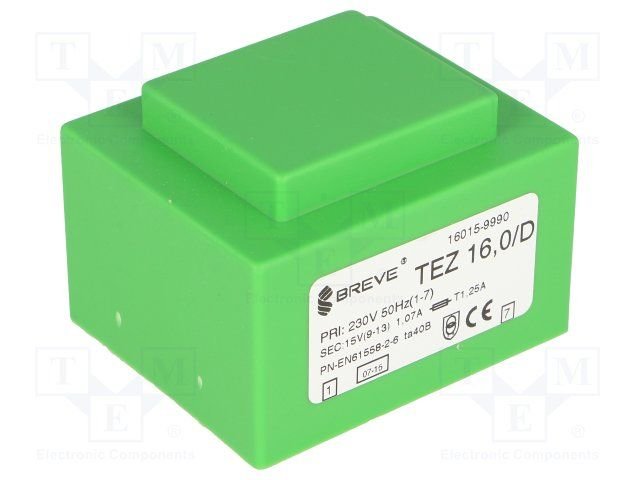

• Manufacturer BREVE TUFVASSONS
• Type of transformer encapsulated
• Power 16VA
• Primary voltage 230V AC
• Secondary voltage 1 15V
• Secondary winding current 1 1066.6mA
• Mounting PCB
• Electrical insulation strength 4kV/60s
• IP rating IP00
• Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
• Thermal class Ta40B
• Secondary winding terminals 9-13
• Primary winding terminals 1-7
• Weight 420g
• A dimension 47mm
• A1 dimension 30mm
• A2 dimension 30mm
• B dimension 57mm
• C dimension 39mm

Parametri

15VAC
1
1070mA
16VA
