Apraksts

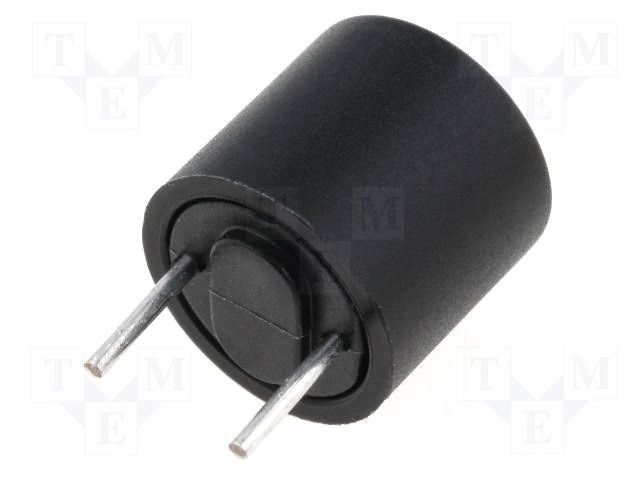

• Manufacturer SCHURTER
• Type of fuse fuse
• Fuse characteristics quick blow
• Breaking capacity 35A
• Current rating 0.2A
• Rated voltage 250V AC
• For products in the Cables and Wires category, a digit/digit number indicates:
• Rated volage U0/U
• where:
• U0 = cable nominal voltage between the conductor and the metal covering or earth
• U = cable nominal voltage between the phase conductors
• Kind of fuse miniature
• Fuse size TR5
• Breaking characteristics 1.5In: min 1h, 2.75In: min 10ms, 2.75In: max 3s, 4In: min 3ms, 4In: max 300ms, 10In: max 20ms
• Max voltage drop 480mV
• Manufacturer series MSF
• Gross weight0.418 g

Parametri

0.2A
250VAC
Ātrs
