Apraksts

• Manufacturer SCI

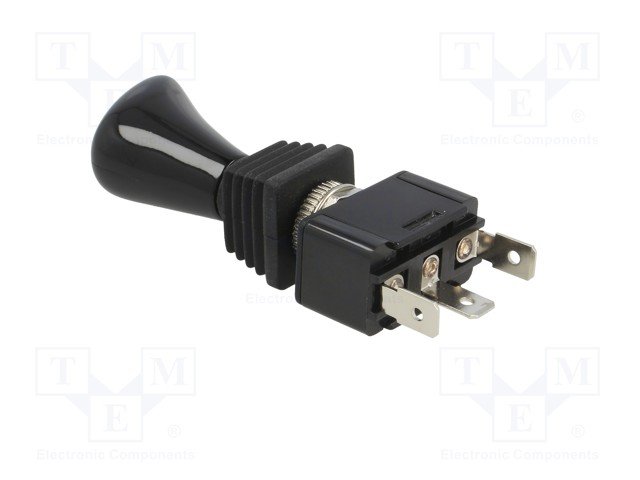

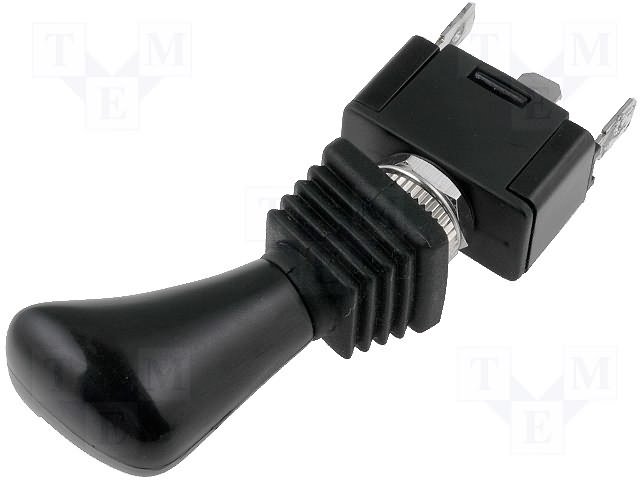

• Type of switch toggle
• Number of positions 3
• Contacts configuration  SP3T
• Switching method  ON-OFF-ON
• AC contacts rating @R  6A / 250V AC
• Leads 6,3x0,8mm connectors
• Terminals plating nickel
• Operating temperature -25...70°C
• Kind of toggle joystick

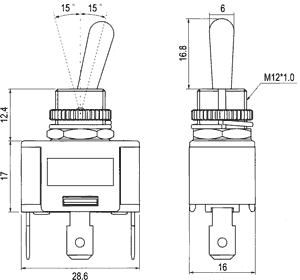

• Mounting hole diameter Ø12.2mm
• Knob height 16.8mm
• Max. contact resistance: 50mΩ
• Body dimensions 28.6x16x17mm
• Manufacturer series R13-416
• Panel thickness max. 5mm
• Body material polyamide
• Lever colour black
• Flammability rating UL94V-2
• Stable positions number 3
• Additional information
• Gross weight: 25.6 g
• Manufacturer part number: R13-416D7

Parametri

SP3T
6A/250VAC
ON-OFF-ON
3
IP00
3
Tumblers
Ar fiksāciju
M12
1
Bez apgaismojuma
