Apraksts

• Manufacturer SCI

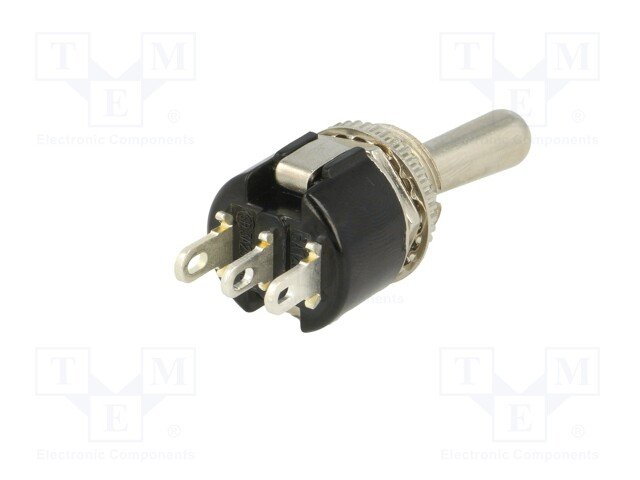

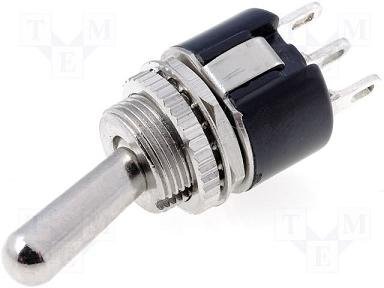

• Type of switch toggle
• Number of positions 2
• Contacts configuration  SPDT
• Switching method  ON-ON
• AC contacts rating @R  3A / 250V AC
• Leads for soldering
• Operating temperature -25...70°C
• Kind of toggle round
• Mounting hole diameter Ø12.2mm
• Knob height 16.8mm
• Max. contact resistance: 50mΩ
• Body dimensions Ø16mm
• Electrical life 6000 cycles
• Manufacturer series R13-37
• Panel thickness max. 4mm
• Stable positions number 2

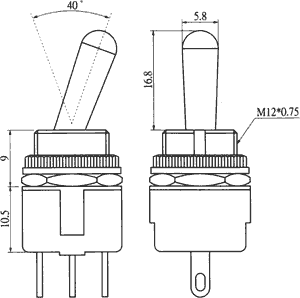

• Dimensions see
• Additional information
• Gross weight: 15.8 g
• Manufacturer part number: R13-37

Parametri

SPDT
3A/250VAC
ON-ON
2
IP00
2
Tumblers
Ar fiksāciju
M12
1
Bez apgaismojuma

Papildu dokumentācija
