Apraksts

• Manufacturer SALECOM ELECTRONICS
• Type of switch toggle
• Number of positions 2
• Contacts configuration  SPDT
• Switching method  ON-ON
• DC contacts rating @R  0.4A / 28V DC
• Leads angled,  for PCB
• Operating temperature -30...85°C
• Kind of toggle round
• Mounting hole diameter Ø5mm
• Knob height 5.33mm
• Max. contact resistance: 20mΩ
• Electrical life 30000 cycles
• Contact plating silver plated
• Stable positions number 2

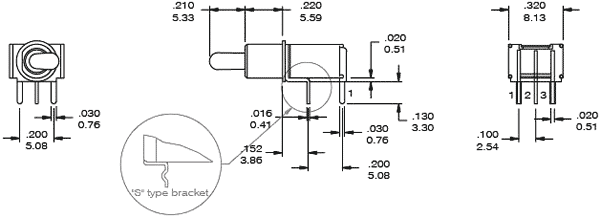

• Dimensions see
• Additional information
• Gross weight: 1.66 g
• Manufacturer part number: SKS06LP

Parametri

SPDT
3A/28VDC
ON-ON
2
IP00
2
Tumblers
Ar fiksāciju
Bez vītnes
1
Bez apgaismojuma

Papildu dokumentācija
