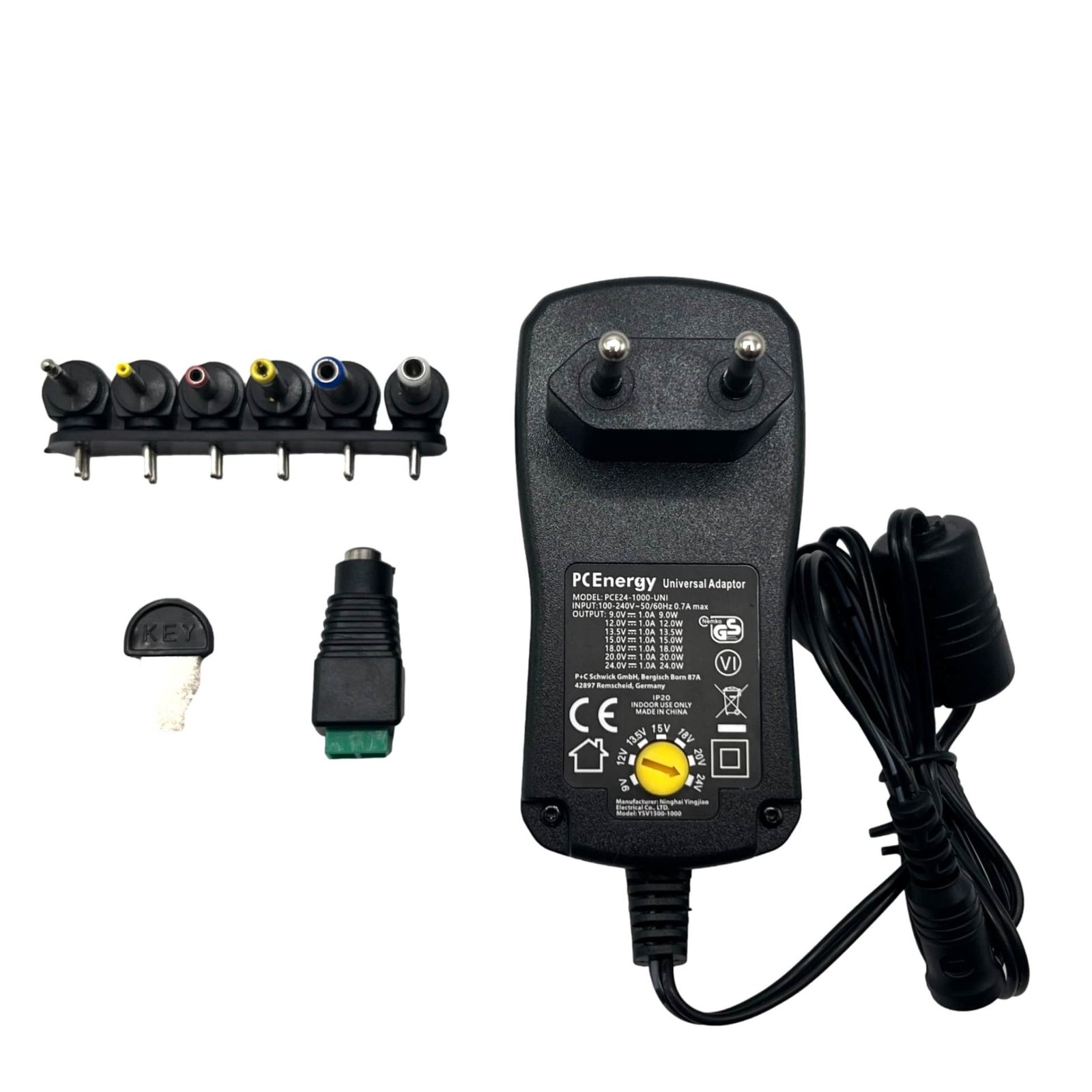

• PCE24-1000-UNI Universal Power Supply Description
• The PCE24-1000-UNI is a very flexible and universal Plug-in Power Supply with different, adjustable voltages.
• With the help of the included key you can adjust the output voltage at the rotary switch in 7 different steps (9V, 12V, 13.5V, 15V, 18V, 20V, 24V). With an output current of 1A, it delivers a maximum power of 24W.
• Thanks to the total of 6 plug-in adapters (see below), the power supply can power a wide variety of devices, such as notebooks, external hard drives, phones, chargers, routers, scanners, DVD players, docking stations, media players, motor controllers, various office equipment, and more.
• The additional LED terminal block adapter expands the application range considerably, so that a variety of different LED products (e.g. LED strips) can be operated.
• Safety is provided by overload, overvoltage and short-circuit protection, which are integrated in the device.
• The PCE24-1000-UNI complies with all EU safety standards and is GS certified.
• PCE24-1000-UNI Universal Power Supply Features
• High efficiency (up to 85%)
• Adjustable output voltage: 9V, 12V, 13.5V, 15V, 18V, 20V, 24V
• Interchangeable connectors: 2.35 x 0.7mm; 3.5 x 1.35mm; 4.0 x 1.7mm; 5.5 x 2.1mm; 5.5 x 2.5mm hollow
• plug(outside/inside), 2.5 mono jack plug, LED terminal strip
• Protected against overload, overvoltage, as well as short circuits
• RoHS and REACH compliant
• GS certified
• DIN standard compliant: EN62368-; EN60950; EN 61558; EN 55032; EN55035; EN 61000-3-2; EN 61000-3-3
• PCE24-1000-UNI Universal Power Supply Technical Data
• Input voltage: 100-240V 50/60 HZ alternating voltage
• Output voltage: 9-24V DC
• Output current: 1A
• Power: max 24 Watt
• Operating temperature: 0 °C to 40 °C
• Relative humidity during operation: 25 - 75%.
• Storage temperature: -10 °C to 80 °C
• Dimensions (housing without cable): 92.2 x 46.2 x 35.8mm (LxWxH)

Parametri

Savienotāju komplekts
Kontaktdakšas
9-24VDC
1A
24W
